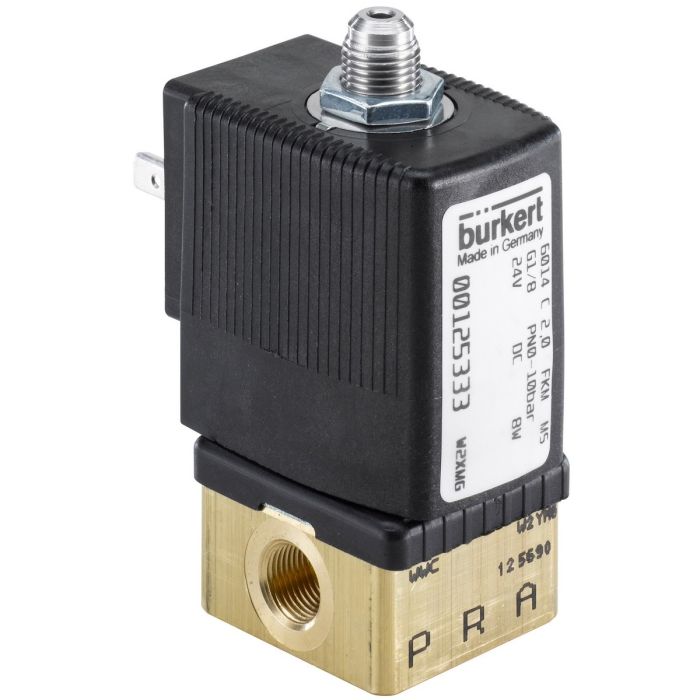

Burkert 332727 24 DC 3-Way Brass 1/8 In Solenoid Valve Normally Closed General Service
3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 2,00 mm (5/64 inch) | 0,00 bar - 10,00 bar (10,00 bar) | Brass | Inner thread - NPT1/8 | 24,00 V - 24,00 V | FKM (Fluor rubber) | -10,00 °C - 120,00 °C | Valve complete
$189.20
Contact Us for Lead Time
SKU
4303120
Valve 6014 is a direct-acting plunger valve. The stopper and plunger guide tube are welded together to enhance pressure resistance and leak-tightness. Various seal material combinations are available depending on the application. A Bürkert-specific flange design (SFB) enables space-saving arrangement of valves on a manifold. Kick and Drop coils are available for the reduction of electrical power consumption during operation.
| Manufacturer | Burkert |
|---|---|
| Manufacturer | Burkert |
| Size | 1/8 In |
| Order Code | 332727 |
| Mfg. Product Number | 6014-C02,0FFMSNM81-5-024/DC-08 |
| Orifice Diameter | 5/64 inch |
| Body Material | Brass |
| Body Design | 3-Way |
| Operation | Normally Closed |
| Voltage | 24 DC |
| Valve Service | General Service |
| Max Fluid Temp | 120° C |
| Cv | 0.11 m3/h (Kv) |
| Coil Wattage | 8 W |
| Coil Class | H |
| Electrical Connection | DIN |
| Construction | 3/2-way-solenoid valve, direct acting |
| Seat Material | FKM (Fluor rubber) |
| Price Per Unit | EA |
| Product Attachment | Product Data Sheet,https://cdn.lsicloud.net/kendall/dam_upload/Burkert_DS6014-Standard-EU-EN.pdf |
