ASCO SC8210G004 24DC 2-Way Brass 1 In Solenoid Valve Normally Closed General Service

ASCO SC8210G004 24DC 2-Way Brass 1 In Solenoid Valve Normally Closed General Service
$292.99
Within 3 to 5 Business Days
SKU
3042926
ASCO Series 8210 Solenoid Valve for general service applications. See Catalog Datasheet for more information.

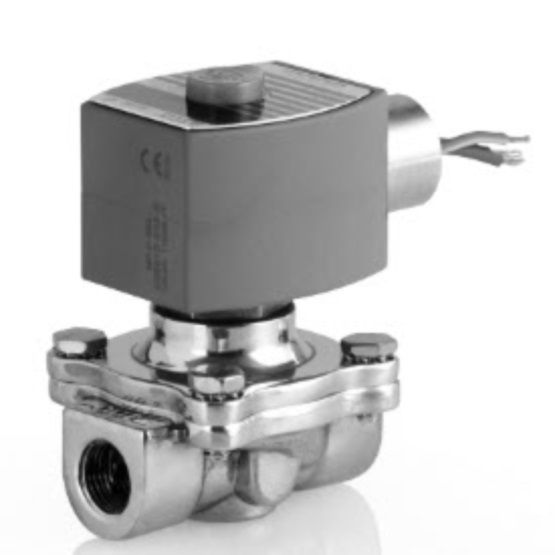

Please note that the above product image is representative for products in this series. Refer to manufacturer datasheets for dimensions and technical drawings.
More Information
Size 1 In
Manufacturer ASCO
Mfg. Product Number SC8210G004DC24/DCD
Orifice Diameter 1 In
Body Design 2-Way
Operation Normally Closed
Voltage 24 DC
Valve Service General Service
Series 8210
Max Fluid Temp (degrees F) 150°F
Ambient Temp. Range 32 to 104°F
Cv 13
Min. OPD 5 PSI
Max OPD Air 125 PSI
Max OPD Water 125 PSI
Max OPD Lt. Oil 125 PSI
Coil Wattage 11.6
Electrical Connection DIN
Solenoid Enclosure Watertight
Kit 302379
Coil 238712-006
Construction Pilot Operated
Seat Material NBR
Price Per Unit Per Each
Product Attachment Product Data Sheet,https://cdn.lsicloud.net/kendall/Resources/kg/ASCO_8210R3.pdf|Installation and Maintenance,https://cdn.lsicloud.net/kendall/Resources/kg/im8210_.375 to .5 NC.pdf
