ASCO 8210G094HW 120/60AC 2-Way Brass 1/2 In Solenoid Valve Normally Closed Hot Water

ASCO 8210G094HW 120/60AC 2-Way Brass 1/2 In Solenoid Valve Normally Closed Hot Water
$180.11
Within 3 to 5 Business Days
SKU
3043096
ASCO Series 8210 Solenoid Valve for hot water applications. See Catalog Datasheet for more information.

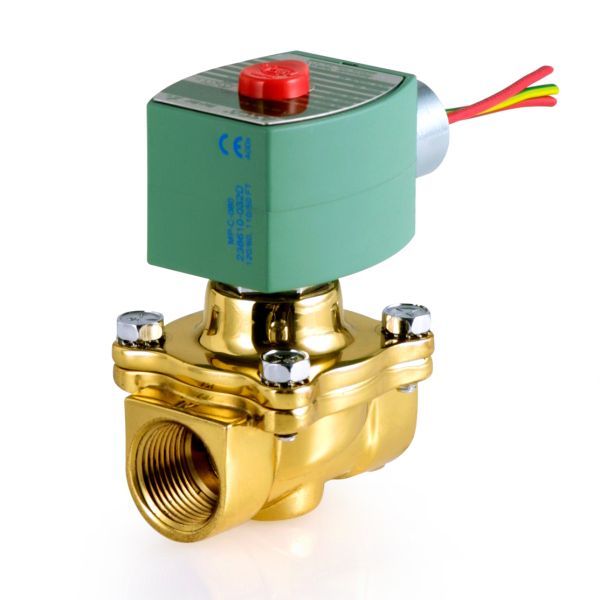

Please note that the above product image is representative for products in this series. Refer to manufacturer datasheets for dimensions and technical drawings.
More Information
Size 1/2 In
Manufacturer ASCO
Order Code 20230
Mfg. Product Number 8210G094HWAC120/60 110/50D
Orifice Diameter 5/8 In
Body Design 2-Way
Operation Normally Closed
Voltage 120/60,110/50 AC
Valve Service Hot Water
Series 8210
Max Fluid Temp (degrees F) 210°F
Ambient Temp. Range 32 to 125°F
Cv 4
Min. OPD 0 PSI
Max ODP Hot Water 100 PSI
Coil Wattage 10.1
Coil Class FT
Electrical Connection 1/2" Conduit w/ 18" Leads
Solenoid Enclosure Watertight
Kit 302306
Coil 238610-032-D*
Construction Pilot Operated
Seat Material EPDM
Price Per Unit Per Each
Product Attachment Product Data Sheet,https://cdn.lsicloud.net/kendall/Resources/kg/ASCO_HotWater_SteamR5.pdf|Installation and Maintenance,https://cdn.lsicloud.net/kendall/Resources/kg/im8210_.375 to .5 NC.pdf
