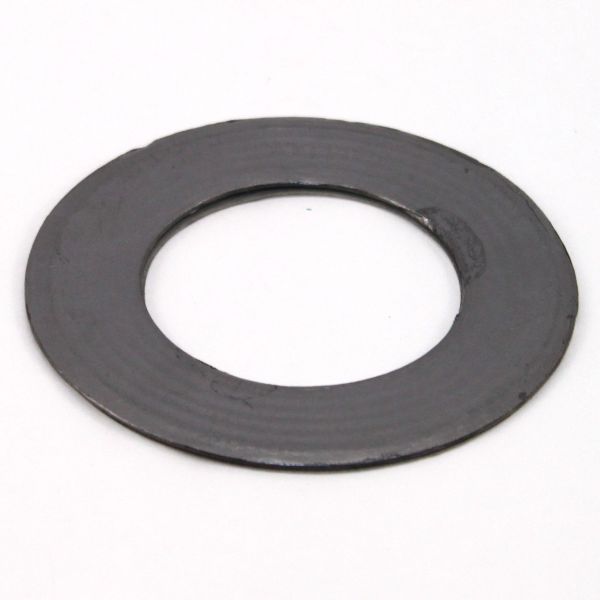

3 150 LB Garlock T316 Stainless Steel Tephonic Gasket
3 IN 150 LB Garlock T316 Stainless Steel Tephonic Metallic Gasket With ePTFE Sealing Element 1/8 IN Thick
$78.76
Within 3 to 5 Business Days
SKU
3006406
3 IN 150 LB Garlock T316 Stainless Steel Tephonic Metallic Gasket, With ePTFE Sealing Element, 1/8 IN Thick
| PIPE SIZE | 3 IN |
|---|---|
| THICKNESS | 1/8 IN |
| MAX CONTINUOUS TEMP | 500 DEG F |
| MAXIMUM PRESSURE x TEMPERATURE | 250,000 (PXT) |
| APPLICATION | AIR, STEAM, WATER, CORROSIVE CHEMICALS, EXTREME TEMPERATURES AND THERMAL CYCLING |
| MAX PRESSURE | 1000 PSIG |
| MAX TEMP | 500 DEG F |
| STYLE / MATERIAL | TEPHONIC |
| MIN TEMP | -400 DEG F |
| GASKET OD | 5-3/8 IN |
| INSIDE DIAMETER | 3-1/2 IN |
| FLANGE RATING | 150 LB ANSI |
| MANUFACTURER | GARLOCK |
| Price Per Unit | Per Each |
| Product Attachment | Product Data Sheet,https://cdn.lsicloud.net/kendall/Resources/kg/GMG_1-9_Graphonic_Familylo.pdf |
