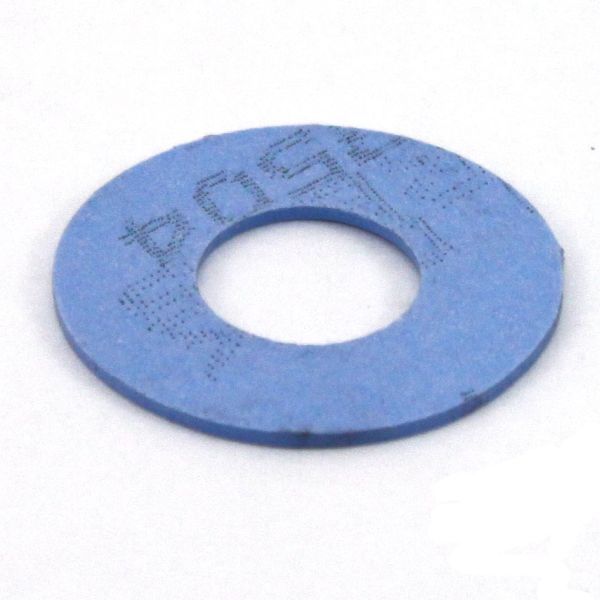

10 150 LB Garlock 3504 Blue Gylon Ring Gasket 1/16 Thick
10 IN 150 LB Garlock 3504 Blue Gylon (PTFE with Glass Microspheres) Ring Gasket 1/16 IN Thick
$82.49
Within 3 to 5 Business Days
SKU
3008618
10 IN 150 LB Garlock 3504 Blue Gylon (PTFE with Glass Microspheres) Ring Gasket, 1/16 IN Thick
| PIPE SIZE | 10 IN |
|---|---|
| THICKNESS | 1/16 IN |
| MAX CONTINUOUS TEMP | 500 DEG F |
| MAXIMUM PRESSURE x TEMPERATURE | 350,000 (PXT) |
| MAX PRESSURE | 1200 PSI |
| STYLE / MATERIAL | 3504 BLUE GYLON |
| Type | Ring Gasket |
| COMPOSITION | PTFE WITH GLASS MICROSPHERES |
| MIN TEMP | -450 DEG F |
| GASKET OD | 13-3/8 IN |
| INSIDE DIAMETER | 10-3/4 IN |
| FLANGE RATING | 150 LB ANSI |
| MANUFACTURER | GARLOCK |
| Price Per Unit | Per Each |
| Product Attachment | Product Data Sheet,https://cdn.lsicloud.net/kendall/Resources/kg/Garlock_3504_Gylon.pdf |
